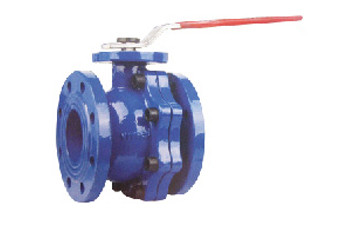

A ball valve is a type of valve that uses a spherical closure element (the ball) to regulate the flow of a fluid. The ball has a hole or port through its center, and when the port is aligned with the flow path of the valve, the valve is open, allowing fluid to pass through. When the ball is rotated 90 degrees, the port is perpendicular to the flow path, and the valve is closed, blocking the flow.

Here are some key points about ball valves:

1. Operation: The ball valve is operated by the valve stem, which is connected to the ball. The rotational movement of the ball controls the opening and closing of the valve.

2. Types: There are different types of ball valves, including the V-shaped ball valve with a hard seal. This design is particularly effective for applications involving fine particles and harsh media due to the strong shear force between the V-shaped ball core and the hardfacing alloy metal valve seat.

3. Applications: Ball valves are versatile and can be used for a wide range of applications. They are commonly used in industrial settings, water treatment plants, pipelines, and more. The V-shaped ball valve, in particular, is suitable for situations where containment of fine particles and other challenging media is required.

4. Functionality: Multi-pass ball valves in a pipeline offer flexibility in controlling the merging of media, diversion, and flow switching. They can also close off any individual channel and isolate two connected channels.

5. Installation: Ball valves are typically installed horizontally in pipelines. The specific type of ball valve and its drive mechanism (pneumatic, electric, or manual) depend on the application and user requirements.

6. Drive Mechanisms: Ball valves can be categorized based on their drive mechanisms. Common types include pneumatic ball valves, electric ball valves, and manual ball valves. Pneumatic and electric ball valves are often used for automated processes, while manual ball valves are operated by hand.

It's important to choose the right type of ball valve based on the specific requirements of the application. If you have any questions or need further clarification, feel free to ask.
